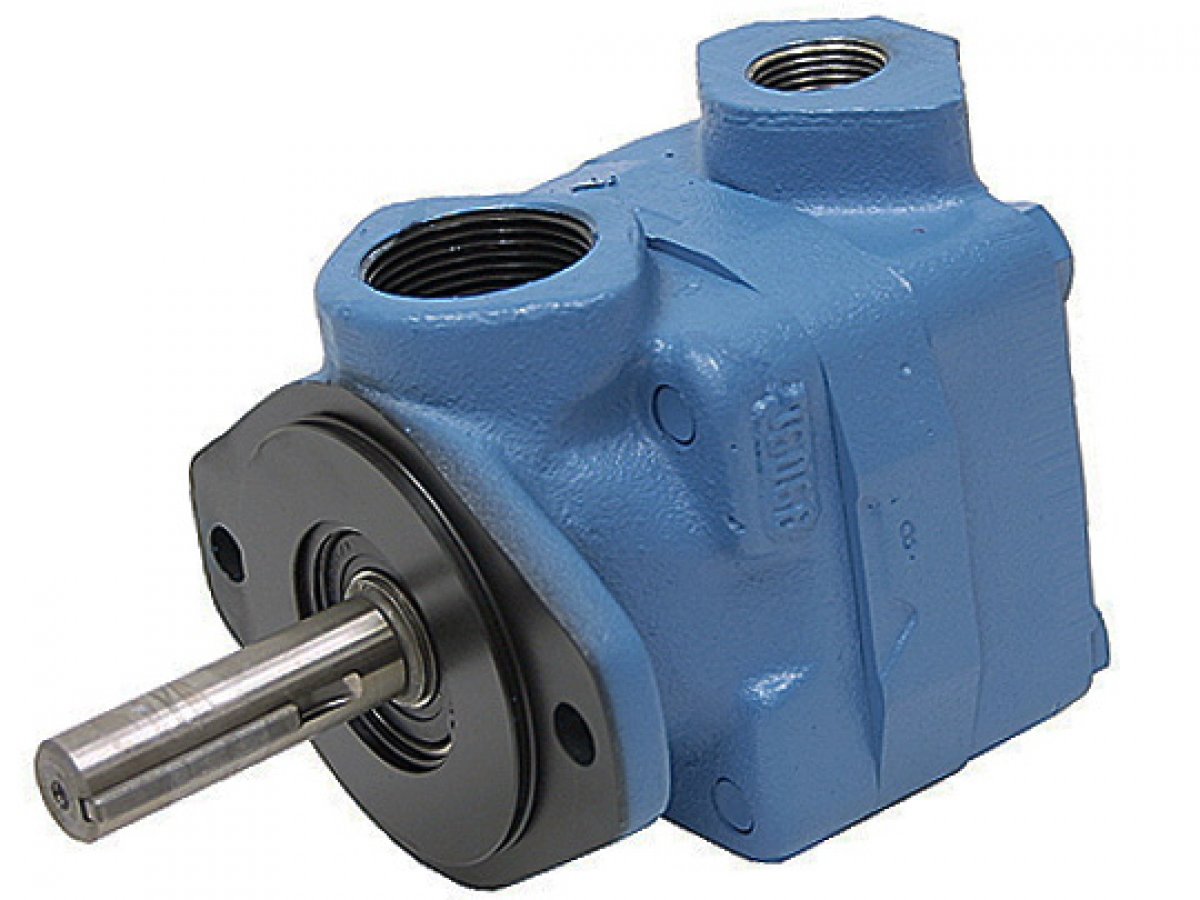

V20 1P7P 1C11 Vickers hydraulic vane pump 7 GPM straight shaft
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100217
- Brand
- Vickers
- Identification number
- V20 1P7P 1C11
- Other numbers
- V201P7P1C11
- Approximate weight (kg)
- 7,4
Description
Flow at 1200 rpm and 7 bar (100 psi): 26,9 liters/minute (7 USgpm)
Displacement: 22,8 cm3/rev
Maximum working pressure: 172 bar (2500 psi)
Maximum speed: 3000 rpm
Flange type: Flange with 2 mounting holes (SAE A type).
Shaft type: Cylindrical shaft, 19,05 mm diameter, with a key.
Inlet port: 1-1/4" NPT
Outlet port: 3/4" NPT
Outlet port position: In line with the inlet port.
Rotation: CW rotation
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: V20
