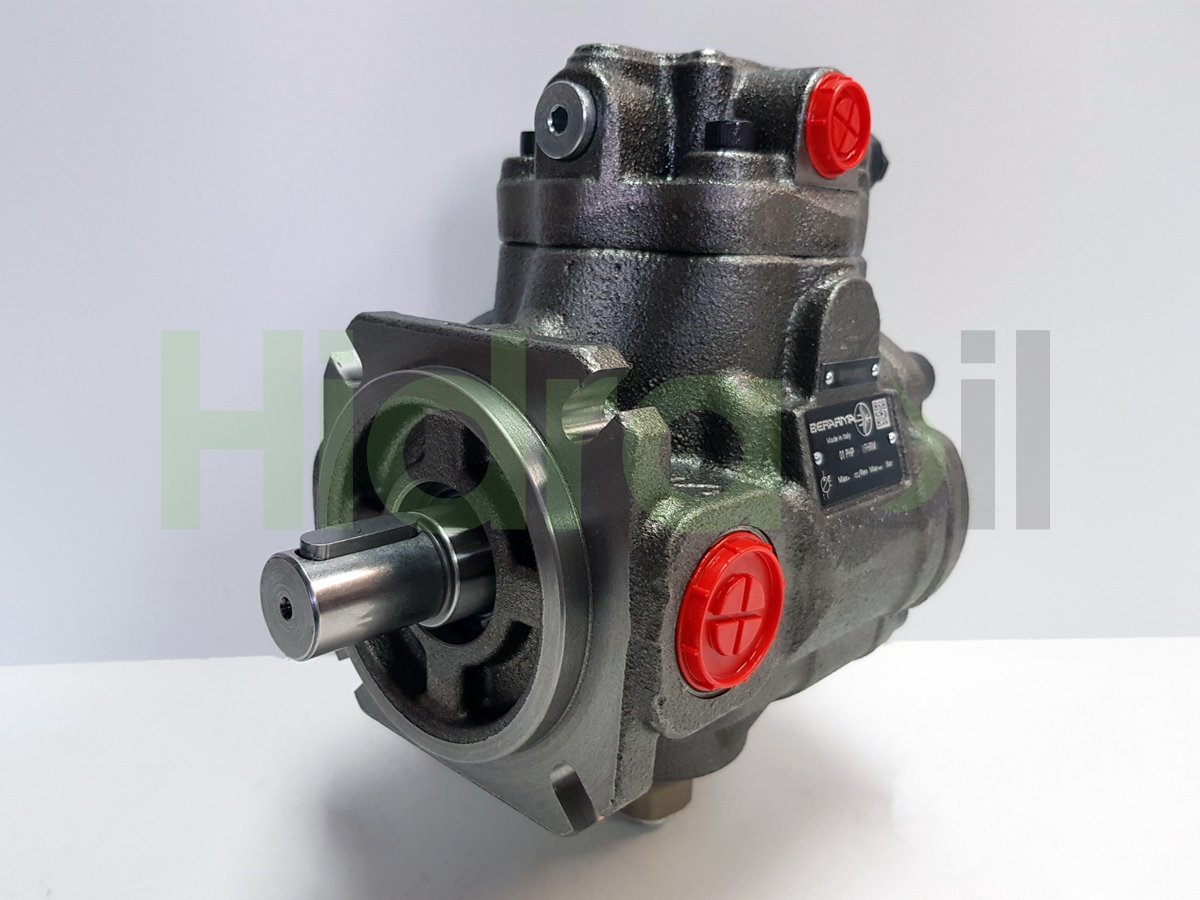

01-PHP3-80-F-H-R-M Berarma hydraulic variable vane pump 80 cm3 with single stage pressure compensator 250 bar
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102602
- Brand
- Berarma
- Identification number
- 01-PHP3-80-F-H-R-M
- Other numbers
- 01 PHP 3-80 FHRM 01PHP3-80-FHRM 01PHP380FHRM
- Approximate weight (kg)
- 57,2
Description
Hydraulic Vane pump variable displacement with hydraulic pressure compensator for single stage.

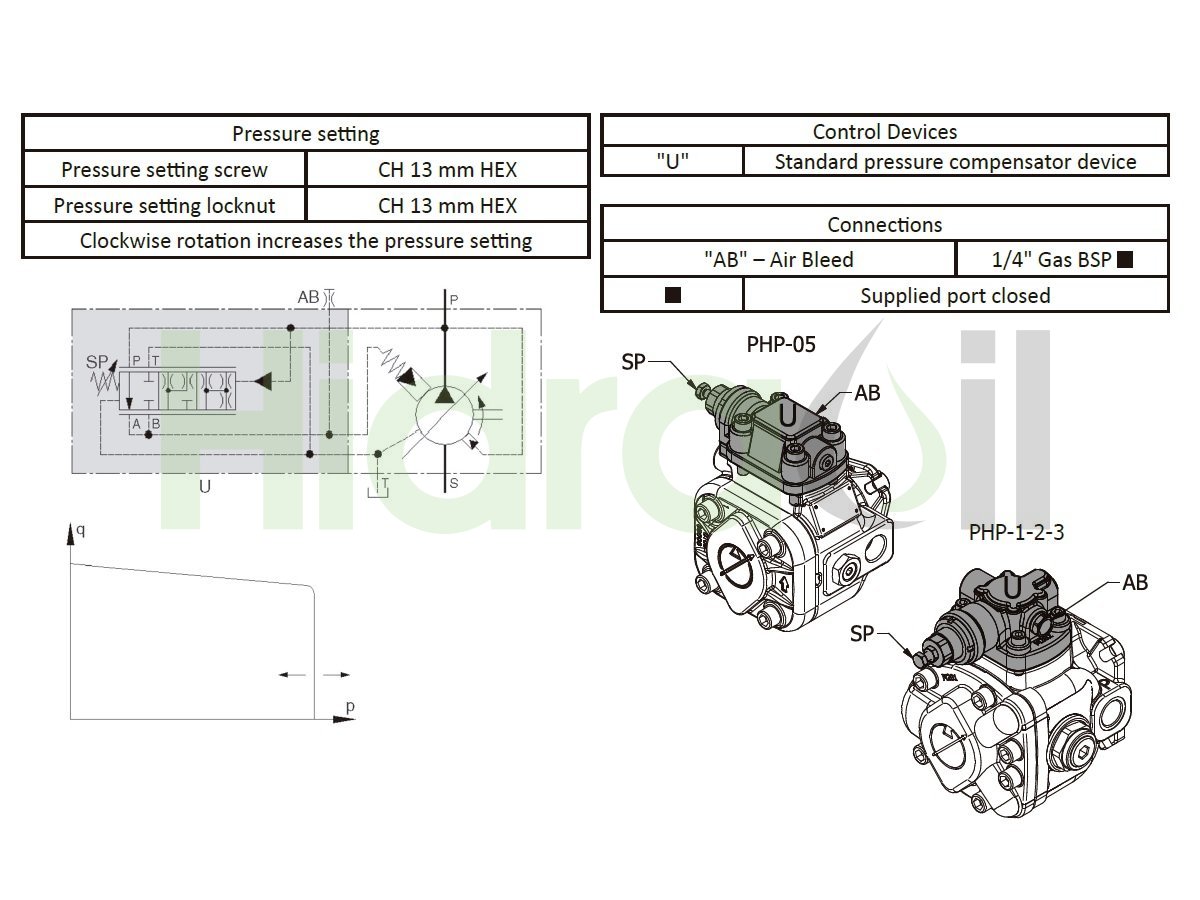

Control Type: Its integrated control unit allows adjusting the displacement of the pump (up to the zero flow condition) according to the flow demanded by the hydraulic system, while maintaining constant pressure equal to the value set on the control unit.
Max displacement: 80 cm3/rev. It has a regulator that allows reducing the actual maximum displacement to a value of 63 cm3/rev.
Flow @ 1500 rpm: 120 liters/minute.
Max working Pressure: 250 bar.
Speed range: from 800 up to 1500 rpm.
Pressure setting range: From 40 up to 250 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).

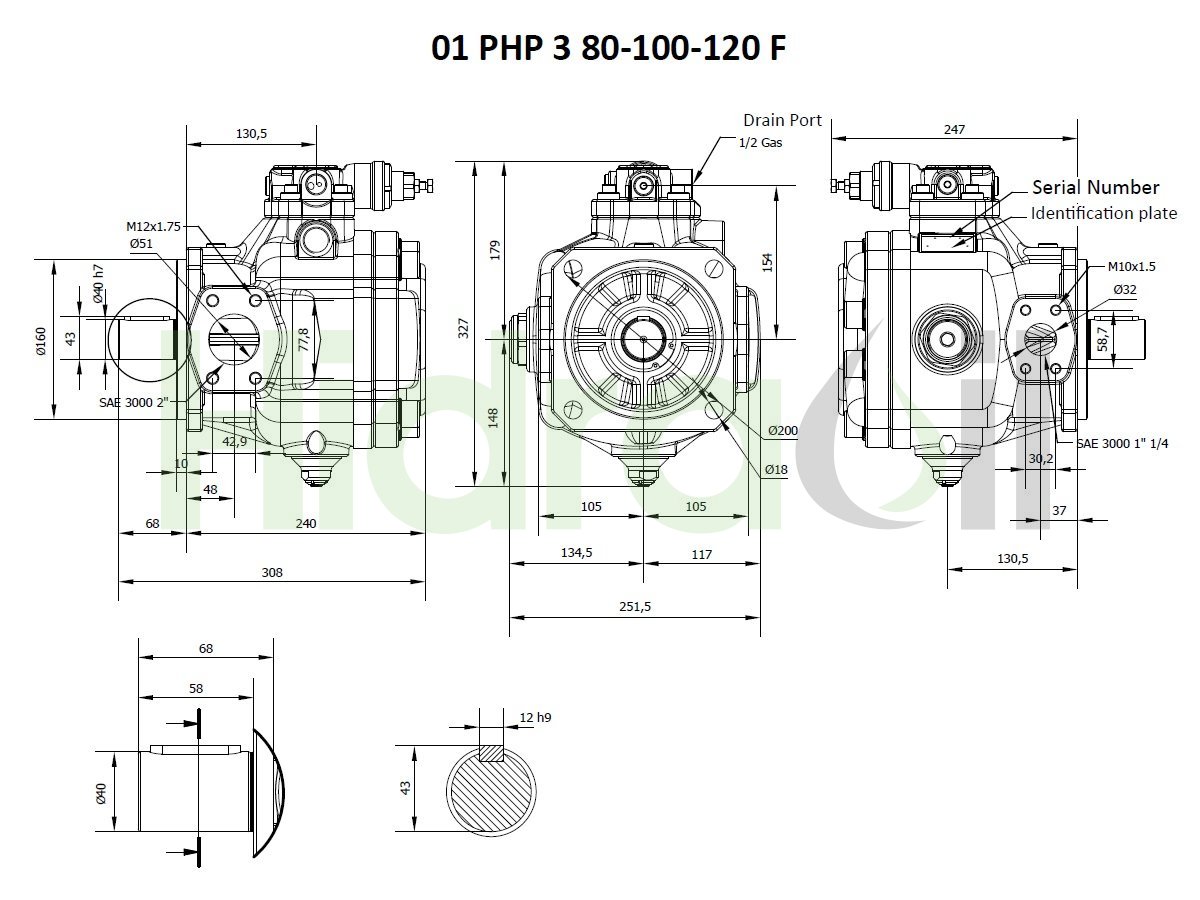

Shaft type: Straight shaft 40 mm Diameter and 12 mm Width parallel key.
Flange type: ISO type with centering diameter 160 mm.
Inlet port: Flange type SAE 3000 2".
Outlet port: Flange type SAE 3000 1" 1/4.
Drain port: 1/2" GAS (located in compensator control).
Notes: This pump version is not prepared for connecting a rear pump. To do so; you will need version -A..
Control Type: Its integrated control unit allows adjusting the displacement of the pump (up to the zero flow condition) according to the flow demanded by the hydraulic system, while maintaining constant pressure equal to the value set on the control unit.
Max displacement: 80 cm3/rev. It has a regulator that allows reducing the actual maximum displacement to a value of 63 cm3/rev.
Flow @ 1500 rpm: 120 liters/minute.
Max working Pressure: 250 bar.
Speed range: from 800 up to 1500 rpm.
Pressure setting range: From 40 up to 250 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Shaft type: Straight shaft 40 mm Diameter and 12 mm Width parallel key.
Flange type: ISO type with centering diameter 160 mm.
Inlet port: Flange type SAE 3000 2".
Outlet port: Flange type SAE 3000 1" 1/4.
Drain port: 1/2" GAS (located in compensator control).
Notes: This pump version is not prepared for connecting a rear pump. To do so; you will need version -A..
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Variable displacement
- Category: Berarma
- Category: PHP
- Category: Standard Control Pressure
- Category: PHP3
- Category: Single pumps
- Last updated: 2020-01-25 17:26:00
