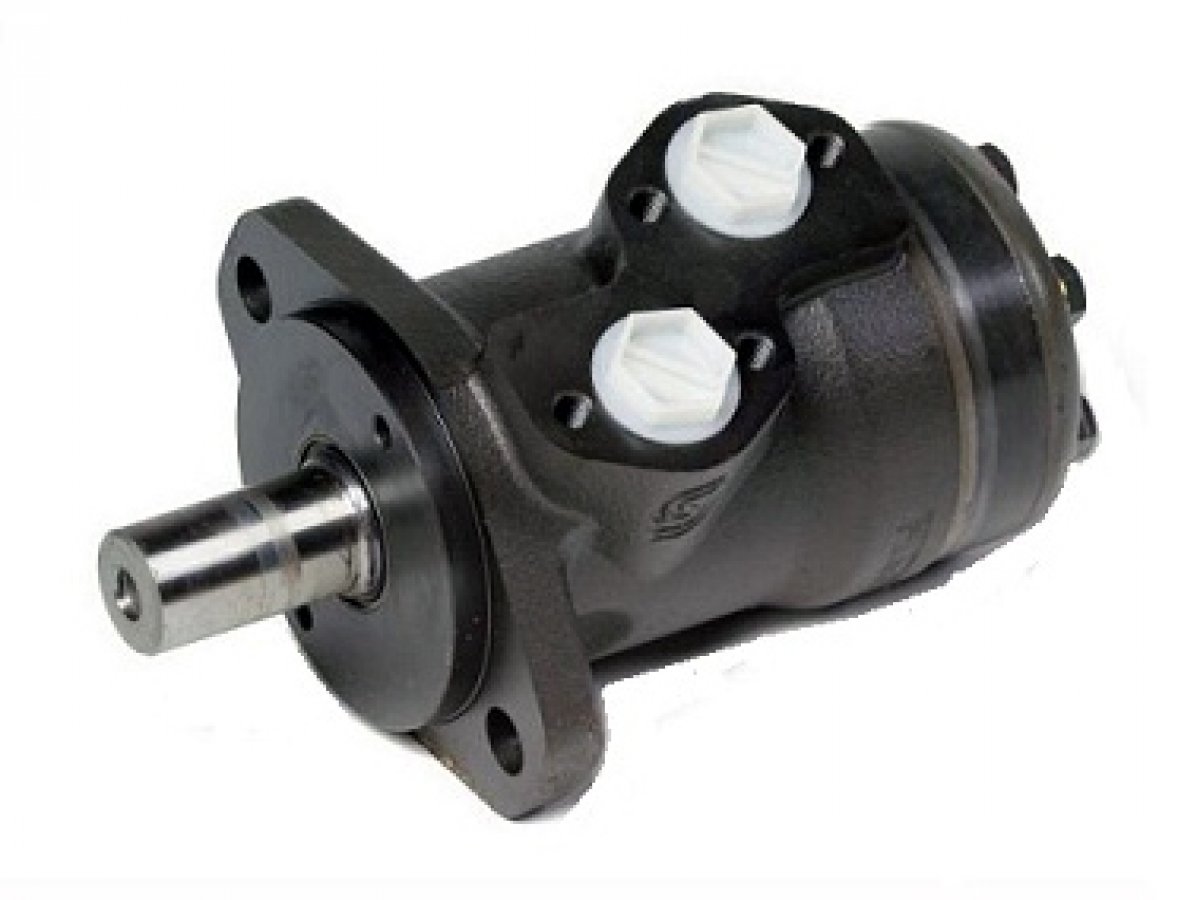

151-0129 OMP 160 Sauer Danfoss hydraulic orbital motor 160 cm3 with cylindrical shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Product discontinued
Replaced by
GFX110189 11186706 OMP X 160 White Hydraulic orbital motor Displacement 160 cm3 View replacement productPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101896
- Brand
- Sauer Danfoss
- Identification number
- 151-0129 OMP 160
- Other numbers
- 151 0129 OMP160 1510129
- Approximate weight (kg)
- 6,3
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: -.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 155.7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Shaft type: -.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 155.7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Category: Straight shaft 25 mm
- Category: With case drain
- Last updated: 2019-01-13 07:25:55
