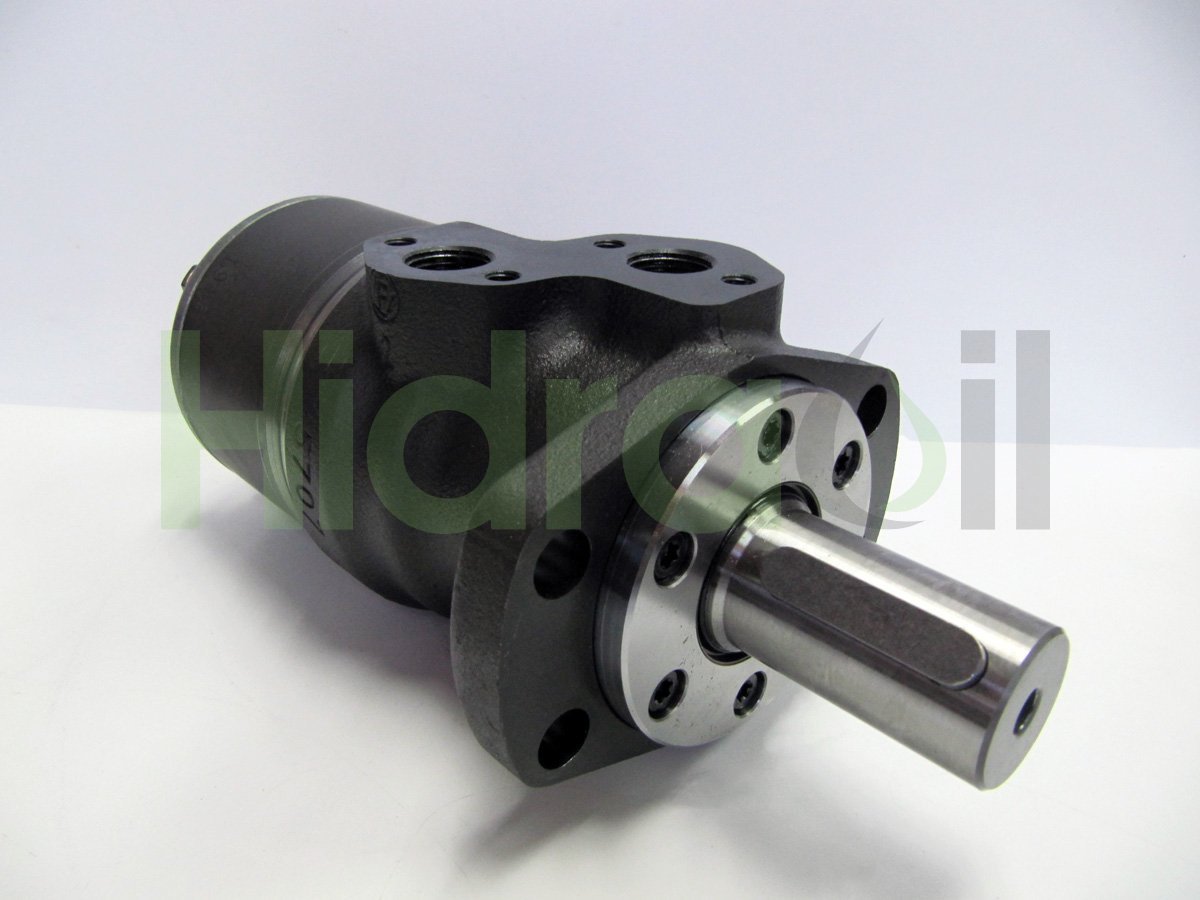

151-6007 OMR 315 Sauer Danfoss orbital hydraulic motor 315 cm3 straight shaft D32 and flange A4
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101300
- Brand
- Sauer Danfoss
- Identification number
- 151-6007 OMR 315
- Other numbers
- 1516007 OMR315
- Approximate weight (kg)
- 9,0
Description
Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82,5 mm y diámetro from 106.4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 54.8 mm.
Displacement: 315.7 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 190 rpm (intermittent operation: 240 rpm).
Max. Torque: 550 Nm (intermittent operation: 690 Nm; peak: 840 Nm).
Max. Output Power: 9 kW (intermittent operation: 10 kW).
Max. Pressure Drop: 135 bar (intermittent operation: 175 bar; peak: 210 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 500 Nm.
Min. starting torque at max. press. drop int.: 660 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Tipo A4 con centraje from diámetro 82,5 mm y diámetro from 106.4 mm entre centros from los 4 taladros.
Gerotor/Geroller width (geroller): 54.8 mm.
Displacement: 315.7 cm3/rev.
Side Ports: Threaded 1/2" GAS.
Drain Port: G1/4 Threaded Port (1/4" BSPP).
Max speed: 190 rpm (intermittent operation: 240 rpm).
Max. Torque: 550 Nm (intermittent operation: 690 Nm; peak: 840 Nm).
Max. Output Power: 9 kW (intermittent operation: 10 kW).
Max. Pressure Drop: 135 bar (intermittent operation: 175 bar; peak: 210 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 500 Nm.
Min. starting torque at max. press. drop int.: 660 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 32 mm
- Category: Flange Tipo A4
