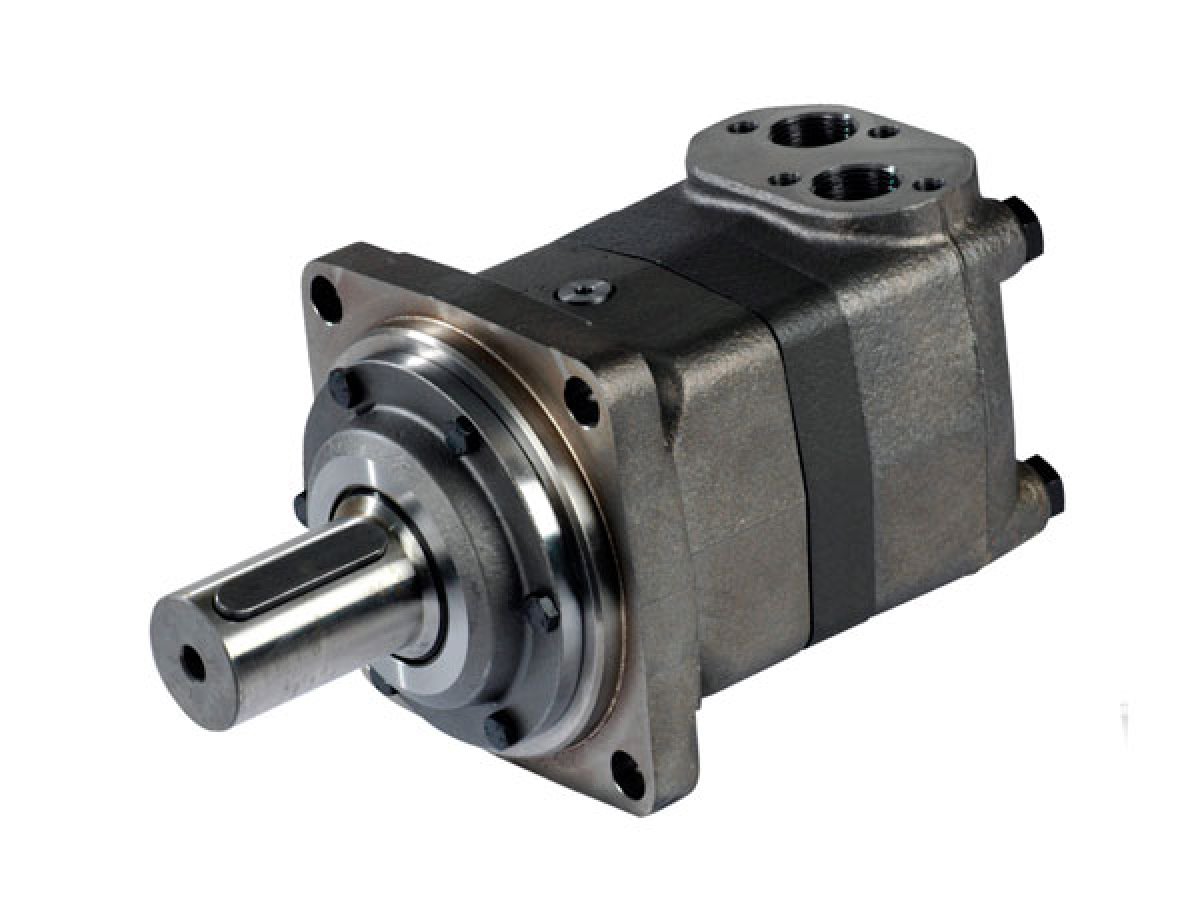

151B3101 OMV 400 Danfoss hydraulic orbital motor 400 cm3 straight shaft D50
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101485
- Brand
- Danfoss
- Identification number
- 151B3101 OMV 400
- Other numbers
- 151B 3101 OMV400
- Approximate weight (kg)
- 32,6
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 50 mm Diameter and 14 mm Width parallel key.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 29,0 mm.
Displacement: 400,9 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 500 rpm (intermittent operation: 600 rpm).
Max. Torque: 1180 Nm (intermittent operation: 1410 Nm).
Max. Output Power: 53,5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 910 Nm.
Min. starting torque at max. press. drop int.: 1090 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 50 mm Diameter and 14 mm Width parallel key.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 29,0 mm.
Displacement: 400,9 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 500 rpm (intermittent operation: 600 rpm).
Max. Torque: 1180 Nm (intermittent operation: 1410 Nm).
Max. Output Power: 53,5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 910 Nm.
Min. starting torque at max. press. drop int.: 1090 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMV
- Category: Straight shaft D50mm
