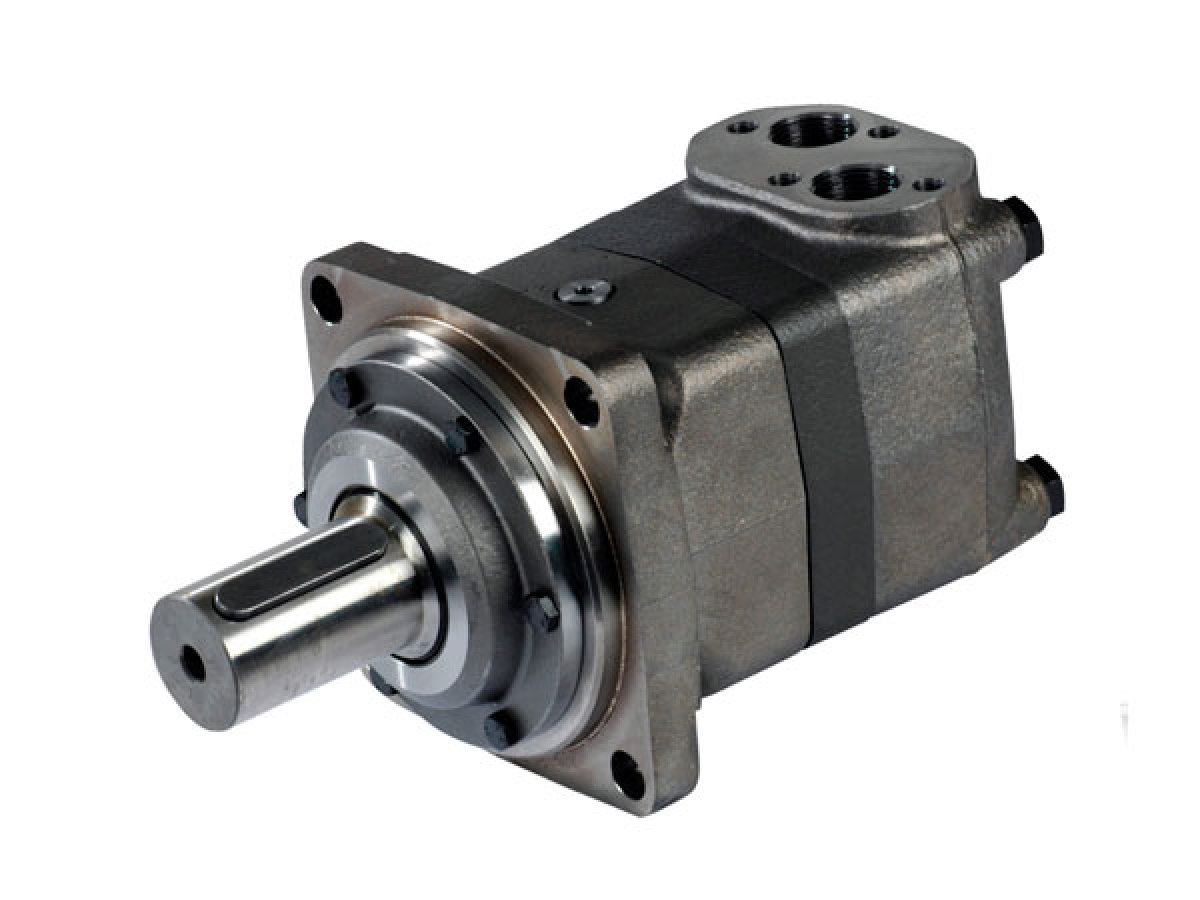

151B3104 OMV 800 Danfoss hydraulic orbital motor 800 cm3 straight shaft D50
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101653
- Brand
- Danfoss
- Identification number
- 151B3104 OMV 800
- Other numbers
- 151B 3104 OMV800
- Approximate weight (kg)
- 36,5
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.

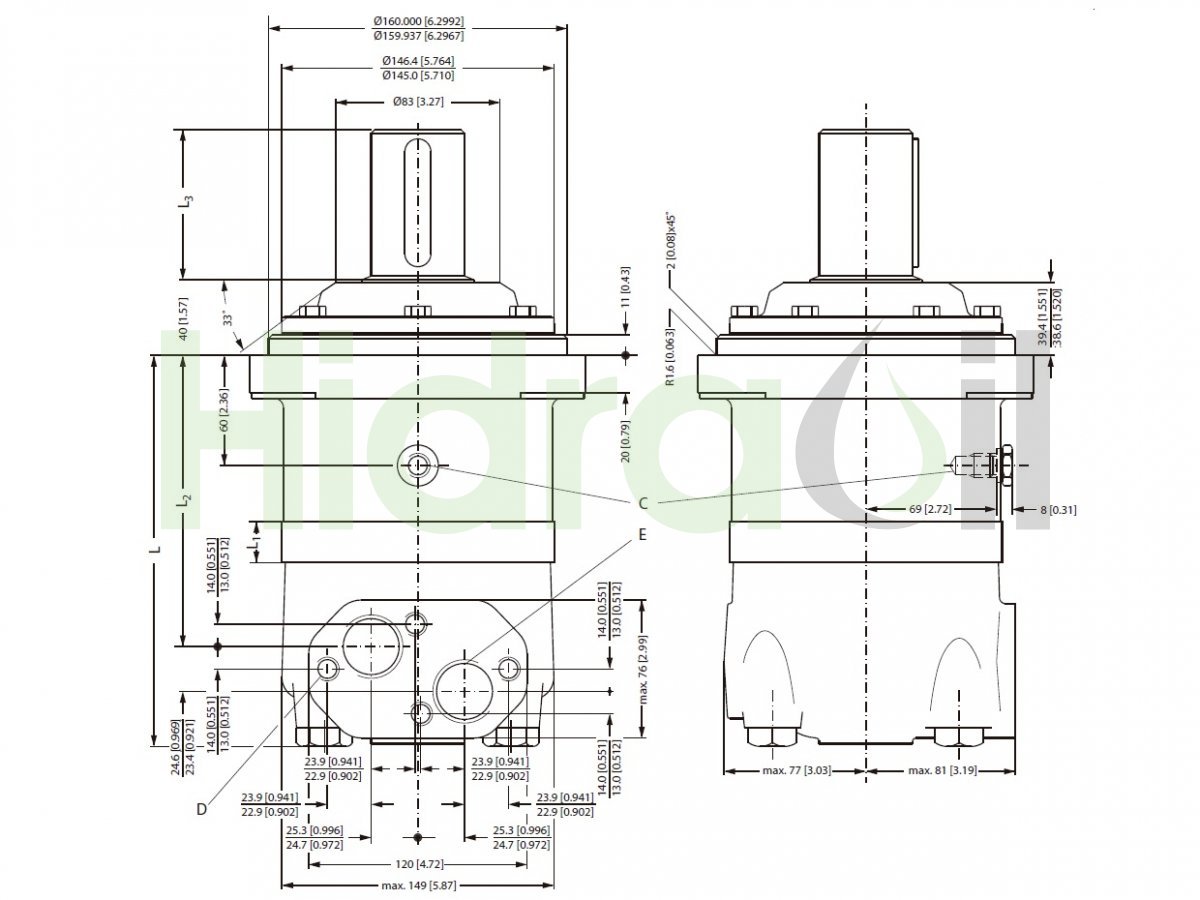

Shaft type: Straight shaft 50 mm Diameter and 14 mm Width parallel key.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 61,5 mm.
Displacement: 801,8 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 250 rpm (intermittent operation: 300 rpm).
Max. Torque: 1880 Nm (intermittent operation: 2110 Nm).
Max. Output Power: 42,5 kW (intermittent operation: 48 kW).
Max. Pressure Drop: 160 bar (intermittent operation: 180 bar; peak load:210 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 1510 Nm.
Min. starting torque at max. press. drop int.: 1700 Nm.
Maximum inlet pressure: 210 bar (intermittent operation: 250 bar; peak load:300 bar).
Maximum return pressure with drain line: 140 bar (intermittent operation: 175 bar; peak load:210 bar).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 50 mm Diameter and 14 mm Width parallel key.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 61,5 mm.
Displacement: 801,8 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 250 rpm (intermittent operation: 300 rpm).
Max. Torque: 1880 Nm (intermittent operation: 2110 Nm).
Max. Output Power: 42,5 kW (intermittent operation: 48 kW).
Max. Pressure Drop: 160 bar (intermittent operation: 180 bar; peak load:210 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 1510 Nm.
Min. starting torque at max. press. drop int.: 1700 Nm.
Maximum inlet pressure: 210 bar (intermittent operation: 250 bar; peak load:300 bar).
Maximum return pressure with drain line: 140 bar (intermittent operation: 175 bar; peak load:210 bar).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMV
- Category: Straight shaft D50mm
- Last updated: 2019-01-24 07:15:11
