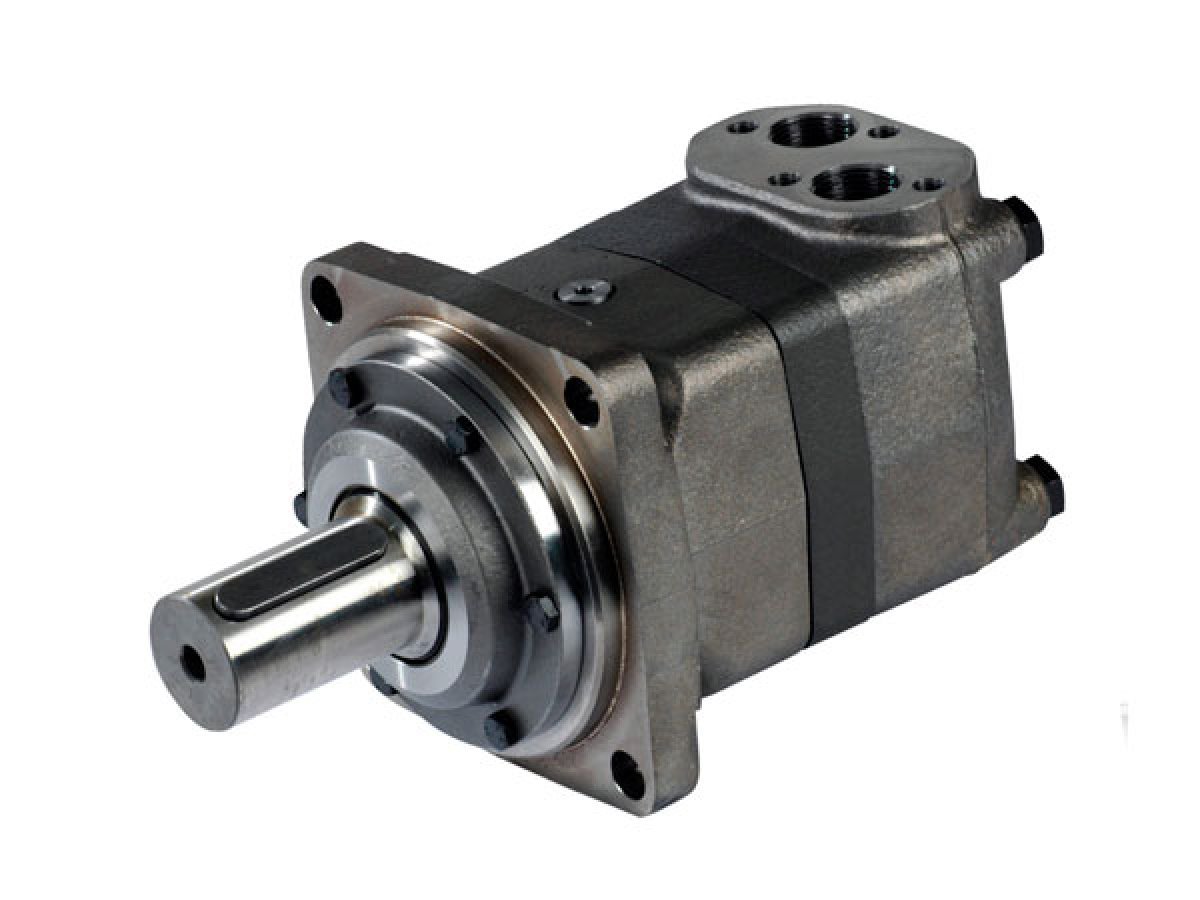

151B3103 OMV 630 Danfoss hydraulic orbital motor 630 cm3 straight shaft D50

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101652
Brand
Danfoss
Identification number
151B3103 OMV 630
Other numbers
151B 3103 OMV630
Approximate weight (kg)
34,9

Description

Hydraulic orbital motor for high-torque applications at low to medium speeds. Robust, compact design with high starting torque and high efficiency.

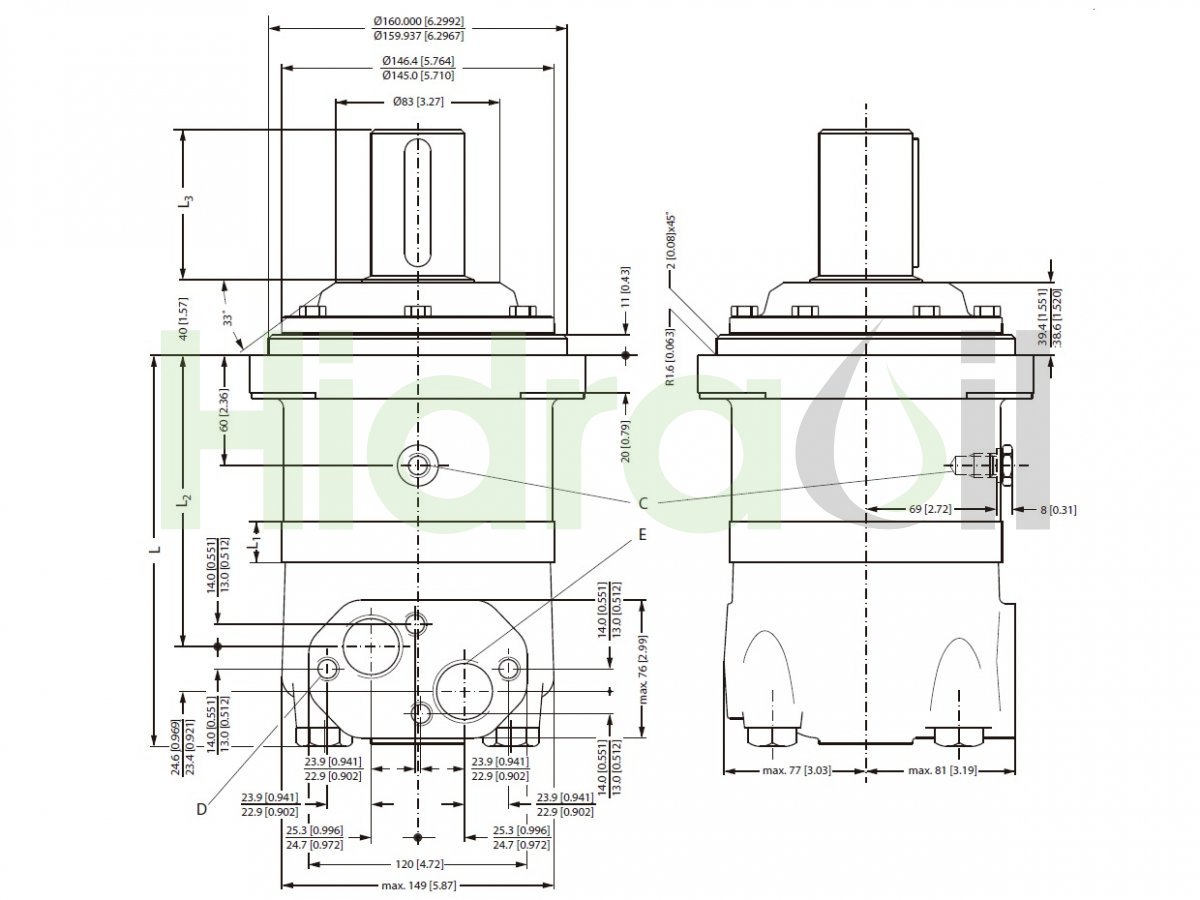

Shaft type: Straight shaft, 50 mm diameter, with a 14 mm wide parallel key.
Flange type: Square flange with 4 mounting holes, 160 mm centering diameter and 200 mm bolt circle diameter.
Gerotor/Geroller width (L1): 47,5 mm.
Displacement: 629,1 cm3/rev.
Side ports: G1 Threaded Ports (1" BSPP).
Drain port: G1/4 Threaded Port (1/4" BSPP)
Maximum speed: 315 rpm (intermittent operation: 380 rpm).
Maximum torque: 1660 Nm (intermittent operation: 1940 Nm).
Maximum output power: 48 kW (intermittent operation: 56 kW).
Maximum pressure drop: 180 bar (intermittent operation: 210 bar; peak load:240 bar).
Maximum oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Maximum starting pressure with the shaft unloaded: 8 bar.
Minimum starting torque at maximum continuous pressure drop: 1330 Nm.
Minimum starting torque at maximum intermittent pressure drop: 1550 Nm.
Maximum inlet pressure: 210 bar (intermittent operation: 250 bar; peak load:300 bar).
Maximum return pressure with drain line: 140 bar (intermittent operation: 175 bar; peak load:210 bar).
Intermittent operation: the stated values are permitted for a maximum of 10% of each minute.
Peak load: the stated values are permitted for a maximum of 1% of each minute.
