KM30.43R0-83E3-LEB/ED-N Casappa hydraulic gear motor 43 cm3 tapered shaft 1:8 y drenaje posterior
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101449
- Brand
- Casappa
- Identification number
- KM30.43R0-83E3-LEB/ED-N
- Other numbers
- KM3043R083E3LEBEDN KM30 43R0 83E3 LEB ED N
- Approximate weight (kg)
- 11,0
Description

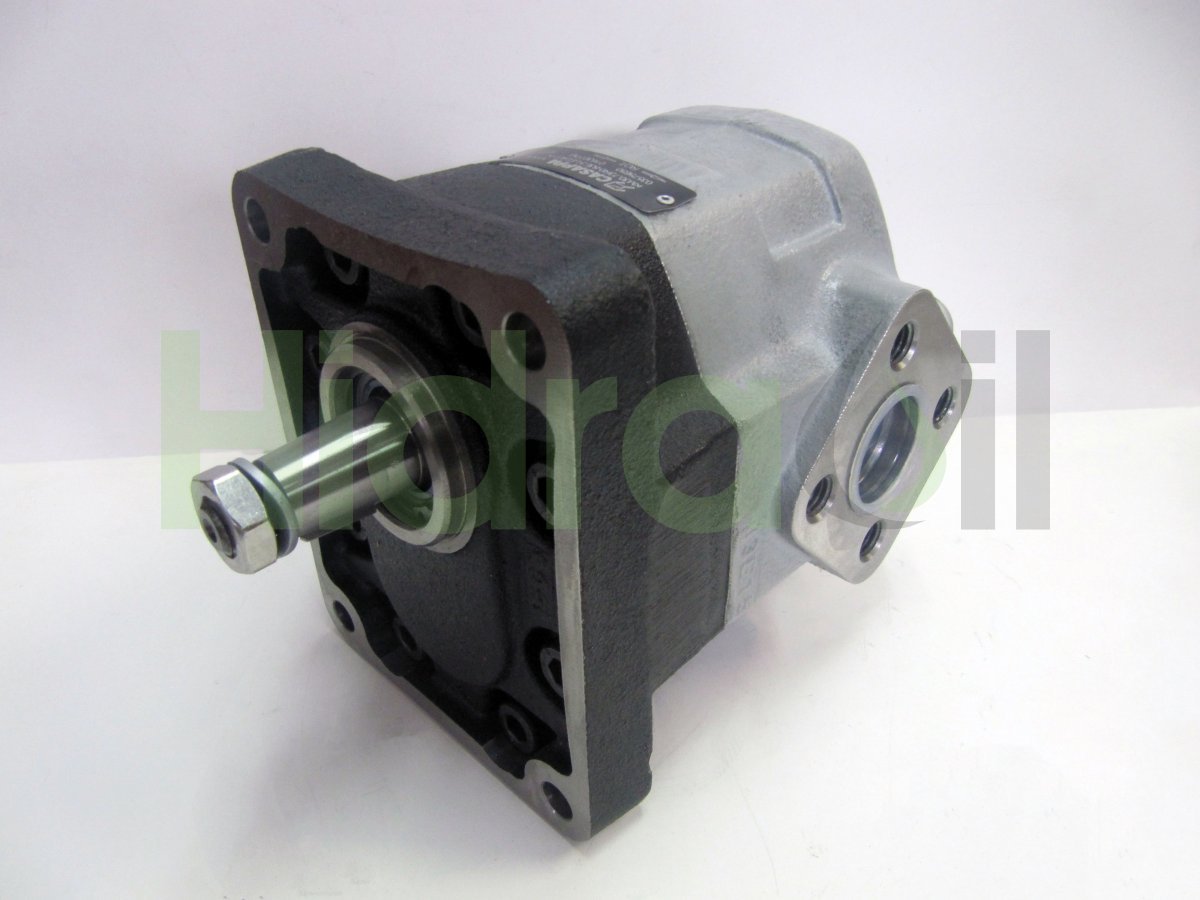

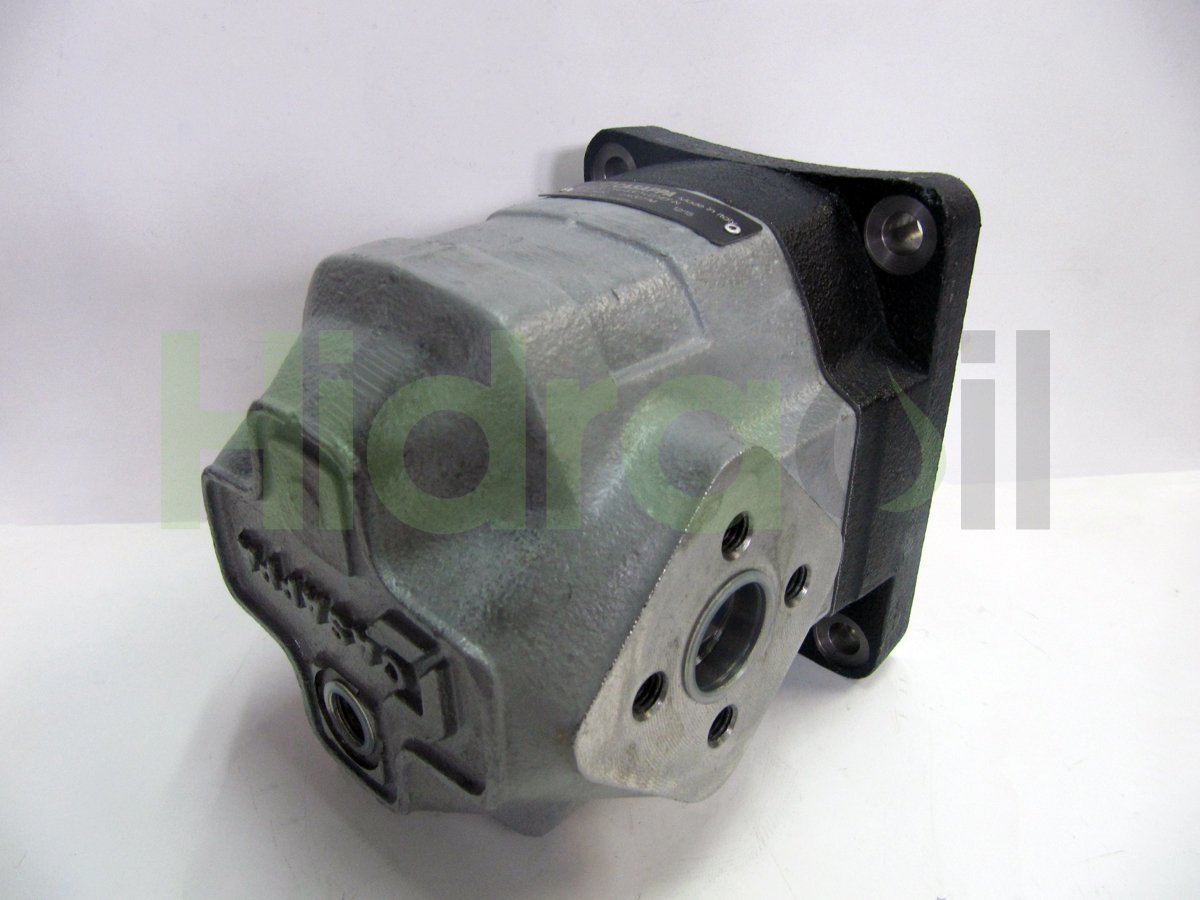

Hydraulic external gear motor Group 3 with cast iron case.
Displacement: 43 cm3/rev.
Max working Pressure: 212 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Reversible con drenaje from 3/8" GAS en la tapa posterior.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
Inlet ports: Flange type port.
Outlet ports: Flange type port.
Displacement: 43 cm3/rev.
Max working Pressure: 212 bar.
Speed Range: From 350 up to 3000 rpm.
Rotation: Reversible con drenaje from 3/8" GAS en la tapa posterior.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
Inlet ports: Flange type port.
Outlet ports: Flange type port.
More information
- Category: Hydraulic Motors
- Category: External gear
- Category: Cast iron
- Category: Group 3
- Category: Casappa
- Last updated: 2016-05-29 22:35:57
