Product identification

• Hidraoil Part number: GFX101452
• Brand of product: Casappa
• Part number: KM30.61R0-83E3-LEB/ED-N
• Other numbers: KM3061R083E3LEBEDN KM30 61R0 83E3 LEB ED N

Description

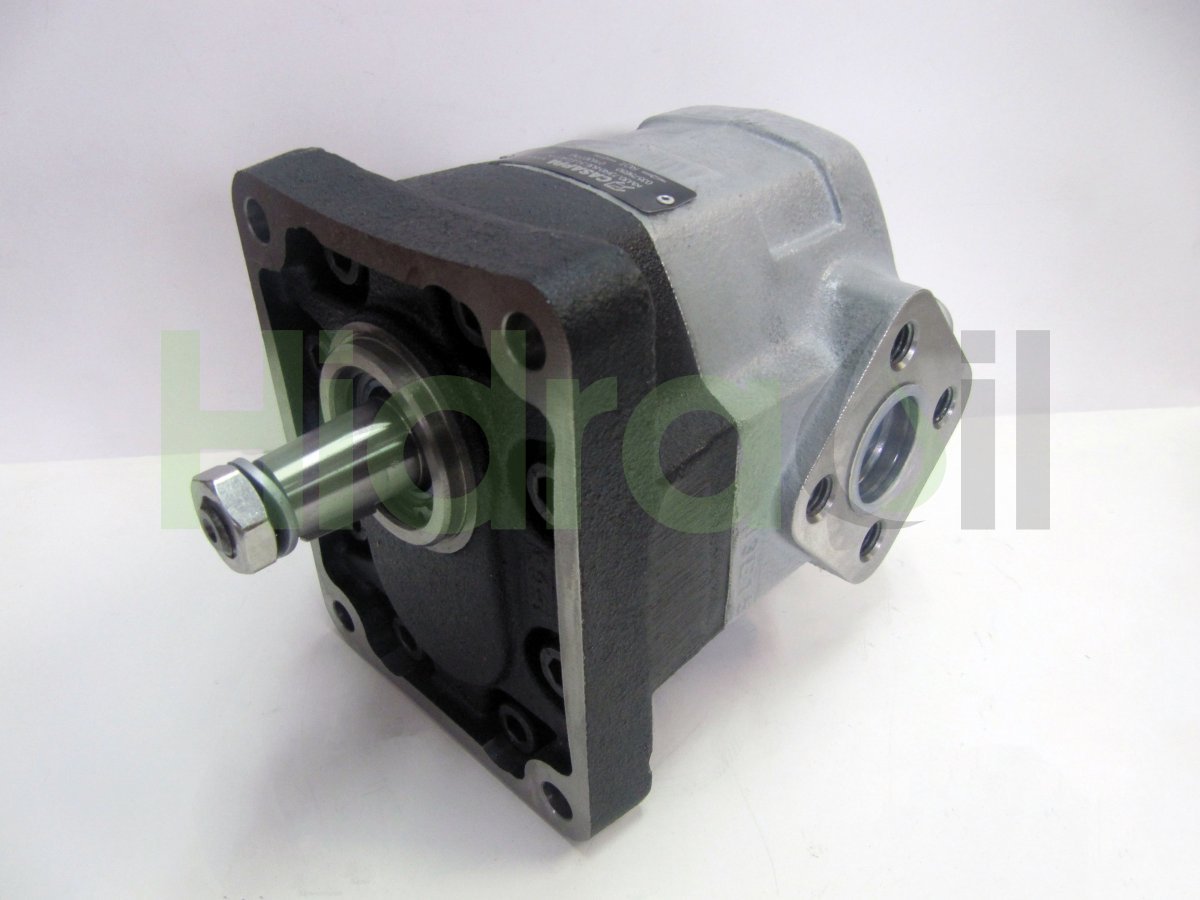

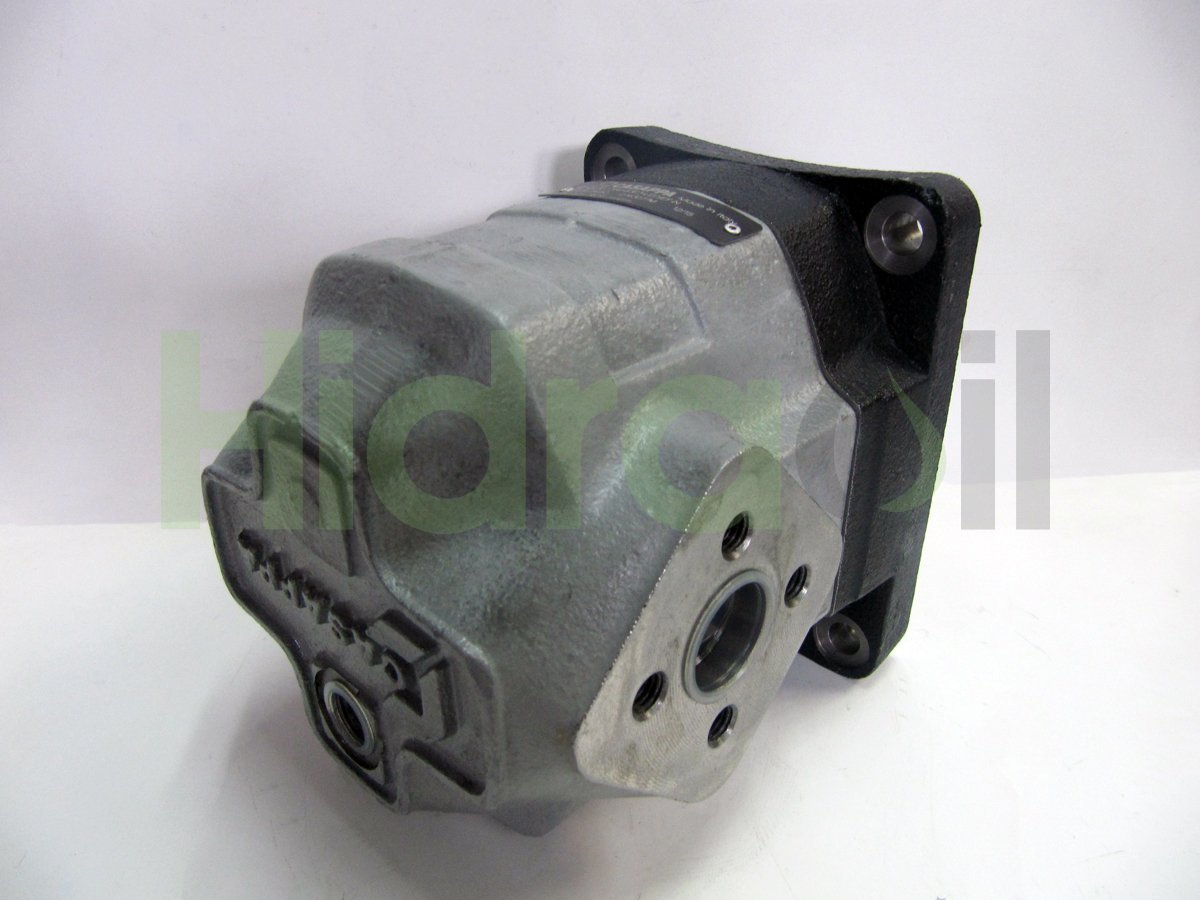

• Hydraulic external gear motor Group 3 with cast iron case.
  Displacement: 61 cm3/rev.
  Max working Pressure: 170 bar.
  Speed Range: From 350 up to 2500 rpm.
  Rotation: Reversible con drenaje from 3/8" GAS en la tapa posterior.
  Shaft type: Tapered 1:8 with 4 mm key width.
  Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
  Inlet ports: Flange type port.
  Outlet ports: Flange type port.
