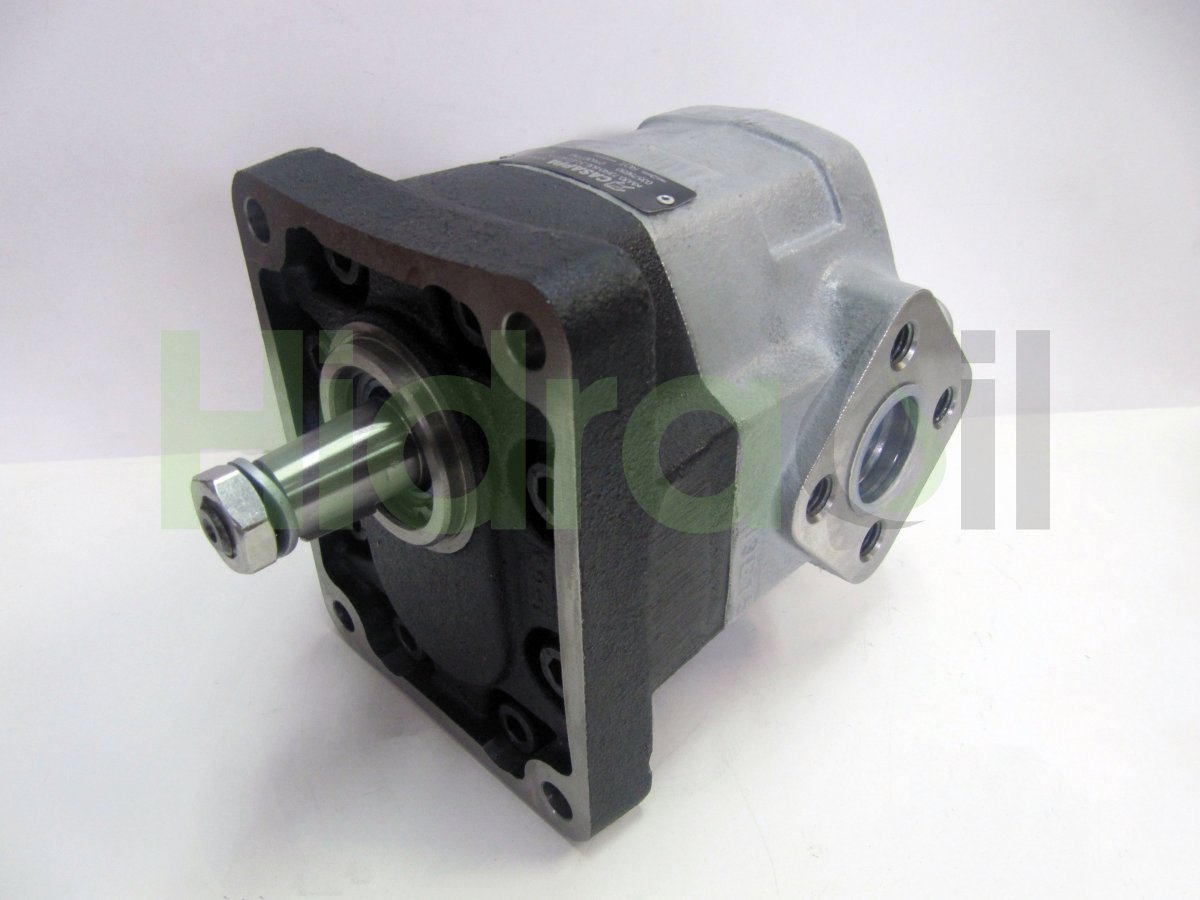

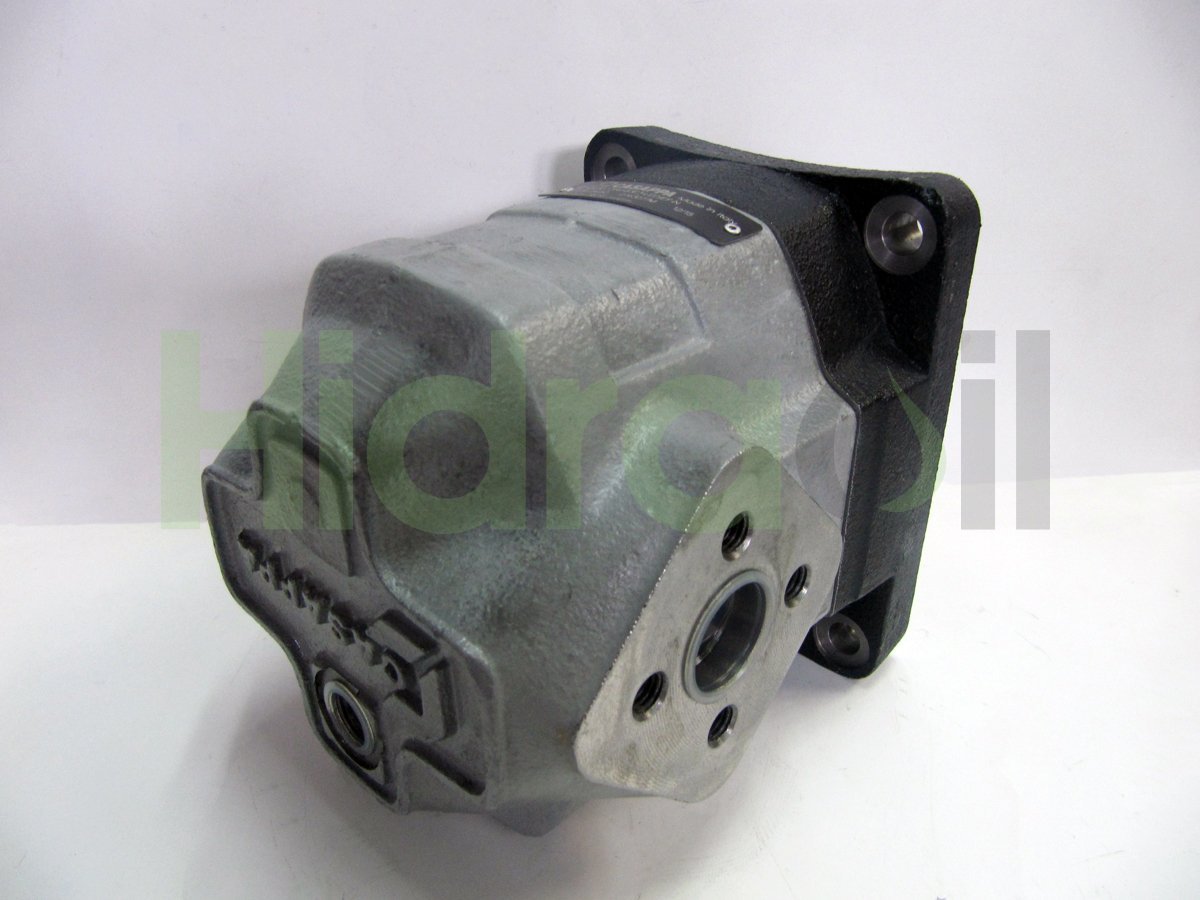

KM30.56R0-83E3-LEB/ED-N Casappa hydraulic gear motor 56 cm3 tapered shaft 1:8 y drenaje posterior

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101451
Brand
Casappa
Identification number
KM30.56R0-83E3-LEB/ED-N
Other numbers
KM3056R083E3LEBEDN KM30 56R0 83E3 LEB ED N
Approximate weight (kg)
11,0

Description

Group 3 hydraulic external gear motor with a cast iron housing.
Displacement: 56 cm3/rev.
Maximum working pressure: 182 bar.
Speed range: From 350 up to 2500 rpm.
Rotation: Bidirectional, with a 3/8" GAS drain in the rear cover.
Shaft type: Tapered 1:8 with 4 mm key width.
Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
Inlet ports: Flange type port.
Outlet ports: Flange type port.
