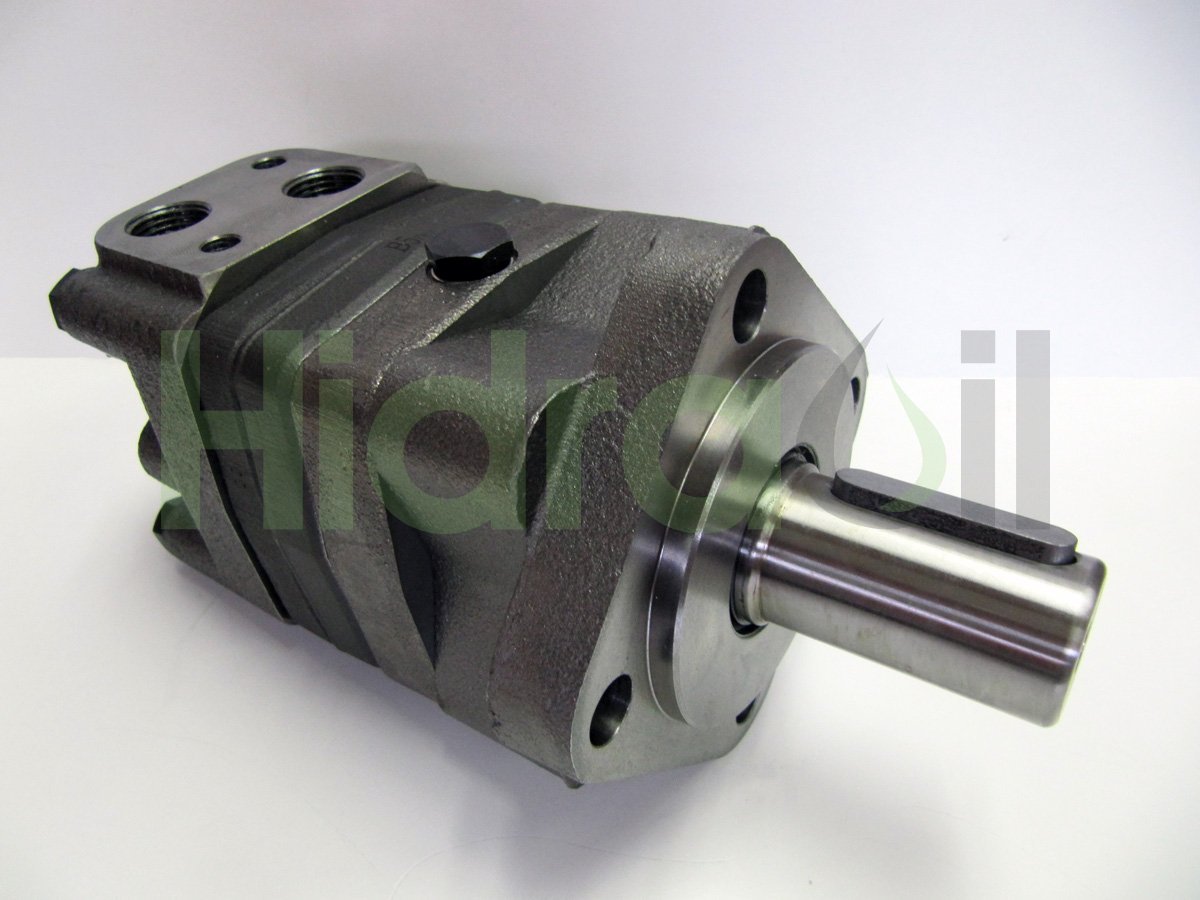

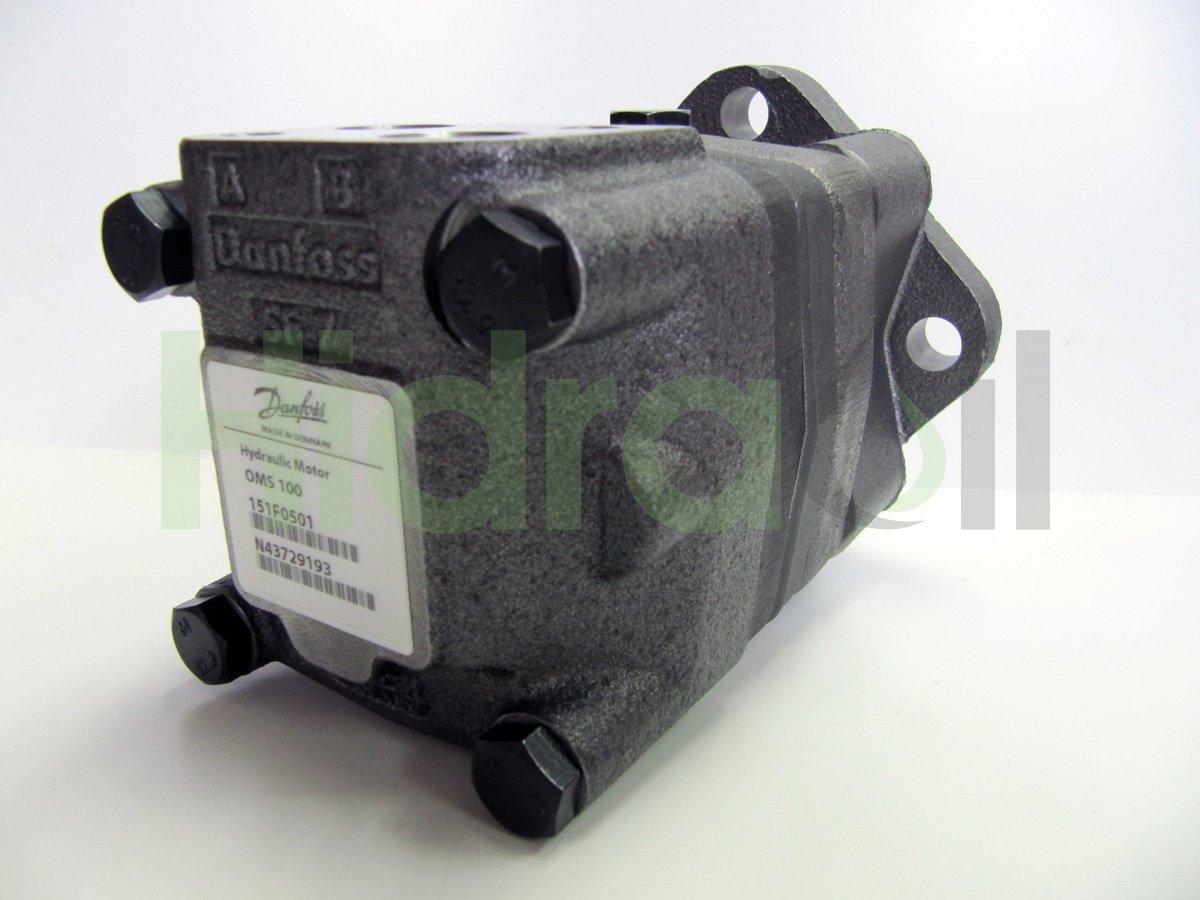

151F0501 OMS 100 White Sauer Danfoss hydraulic orbital motor 100 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100128
- Brand
- White
- Identification number
- 151F0501 OMS 100
- Other numbers
- 151F 0501 OMS100 151F0201 151F 0201
- Approximate weight (kg)
- 10,0
Description
Hydraulic Orbital Motor for Low speed and High Torque applications.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Estándar from 4 taladros con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from taladros en diagonal.
Gerotor/Geroller width (geroller): 17,4 mm.
Displacement: 100 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 750 rpm (intermittent operation: 900 rpm).
Max. Torque: 305 Nm (intermittent operation: 390 Nm).
Max. Output Power: 18 kW (intermittent operation: 22,5 kW).
Max. Pressure Drop: 210 bar (intermittent operation: 275 bar; peak load:295 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 230 Nm.
Min. starting torque at max. press. drop int.: 300 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Estándar from 4 taladros con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from taladros en diagonal.
Gerotor/Geroller width (geroller): 17,4 mm.
Displacement: 100 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 750 rpm (intermittent operation: 900 rpm).
Max. Torque: 305 Nm (intermittent operation: 390 Nm).
Max. Output Power: 18 kW (intermittent operation: 22,5 kW).
Max. Pressure Drop: 210 bar (intermittent operation: 275 bar; peak load:295 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 230 Nm.
Min. starting torque at max. press. drop int.: 300 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: Straight shaft D32 and flange A4
- Last updated: 2015-06-19 12:04:19
