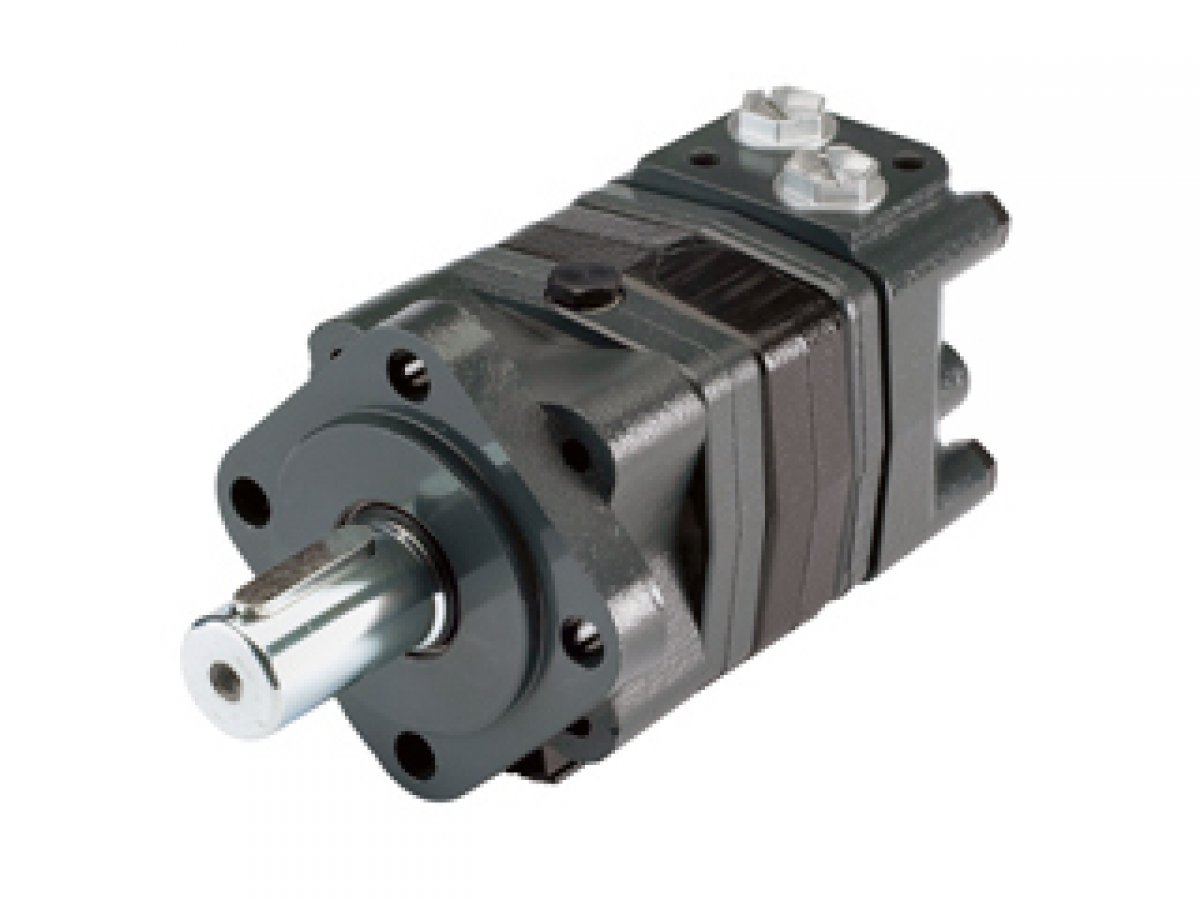

151F0506 OMS 315 White Sauer Danfoss hydraulic orbital motor 315 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100133
- Brand
- White
- Identification number
- 151F0506 OMS 315
- Other numbers
- 151F 0506 OMS315 151F0206 151F 0206
- Approximate weight (kg)
- 12,3
Description
Hydraulic Orbital Motor for Low speed and High Torque applications.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal.
Gerotor/Geroller width (geroller): 54,8 mm.
Displacement: 314,9 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 285 rpm).
Max. Torque: 825 Nm (intermittent operation: 1000 Nm).
Max. Output Power: 15 kW (intermittent operation: 17 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:260 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 710 Nm.
Min. starting torque at max. press. drop int.: 850 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal.
Gerotor/Geroller width (geroller): 54,8 mm.
Displacement: 314,9 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 240 rpm (intermittent operation: 285 rpm).
Max. Torque: 825 Nm (intermittent operation: 1000 Nm).
Max. Output Power: 15 kW (intermittent operation: 17 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:260 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 710 Nm.
Min. starting torque at max. press. drop int.: 850 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: Straight shaft D32 and flange A4
- Last updated: 2015-10-06 18:49:12
