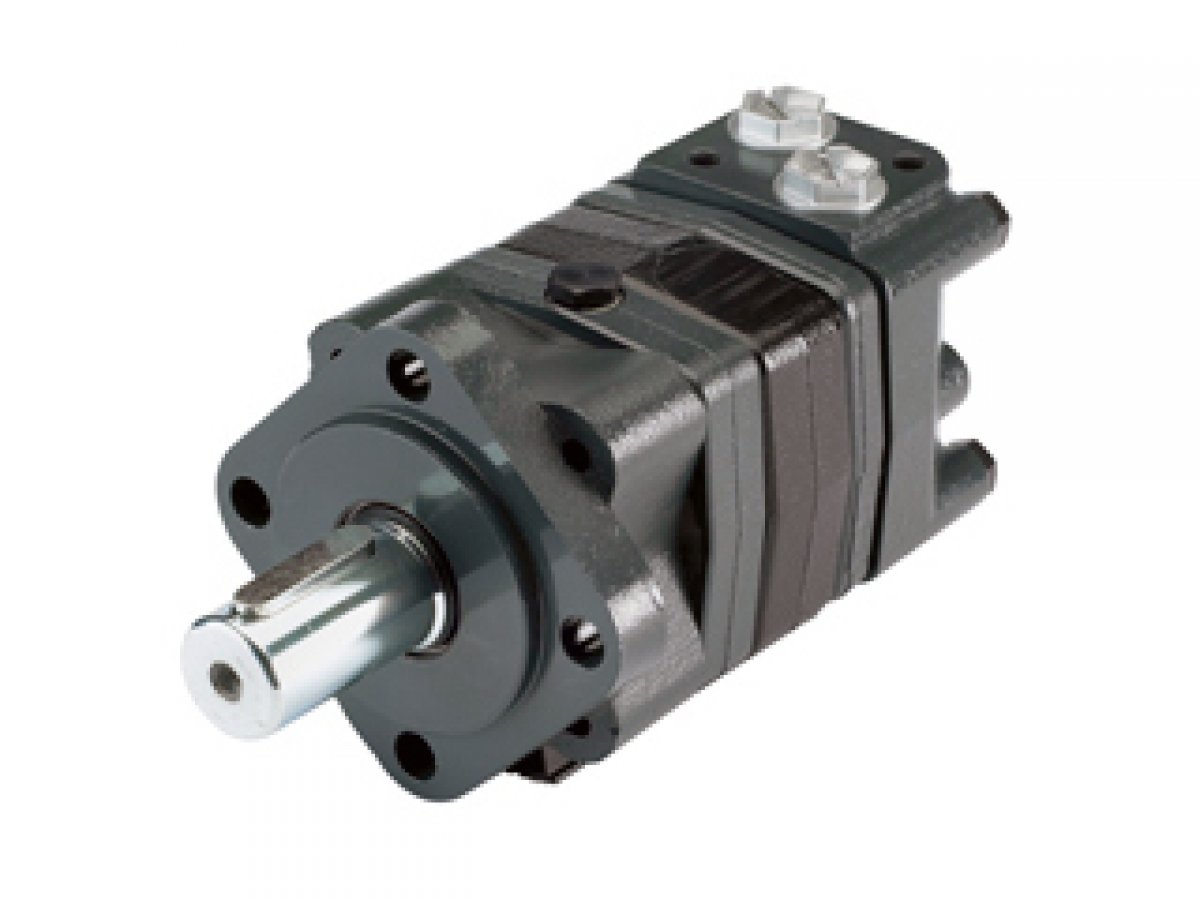

151F0605 OMS 400 Sauer Danfoss hydraulic orbital motor 400 cm3 with cylindrical shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100134
- Brand
- Danfoss White
- Identification number
- 151F0605 OMS 400
- Other numbers
- 151F 0605 OMS400 151F0305 151F 0305 151F5107 151F 5107
- Approximate weight (kg)
- 13,1
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Gearwheel set case width (L1): 68,4 mm
Displacement: 393 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 190 rpm (intermittent operation: 230 rpm)
Max. Torque: 865 Nm (intermittent operation: 990 Nm)
Max. Output Power: 11 kW (intermittent operation: 12,5 kW)
Max. Pressure Drop: 160 bar (intermittent operation: 190 bar; peak load:210 bar)
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute)
Max. starting pressure with unloaded shaft: 8 bar
Min. starting torque at max. press. drop cont.: 710 Nm
Min. starting torque at max. press. drop int.: 840 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Gearwheel set case width (L1): 68,4 mm
Displacement: 393 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 190 rpm (intermittent operation: 230 rpm)
Max. Torque: 865 Nm (intermittent operation: 990 Nm)
Max. Output Power: 11 kW (intermittent operation: 12,5 kW)
Max. Pressure Drop: 160 bar (intermittent operation: 190 bar; peak load:210 bar)
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute)
Max. starting pressure with unloaded shaft: 8 bar
Min. starting torque at max. press. drop cont.: 710 Nm
Min. starting torque at max. press. drop int.: 840 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: Straight shaft D32 and flange A4
- Last updated: 2018-10-25 22:58:24
