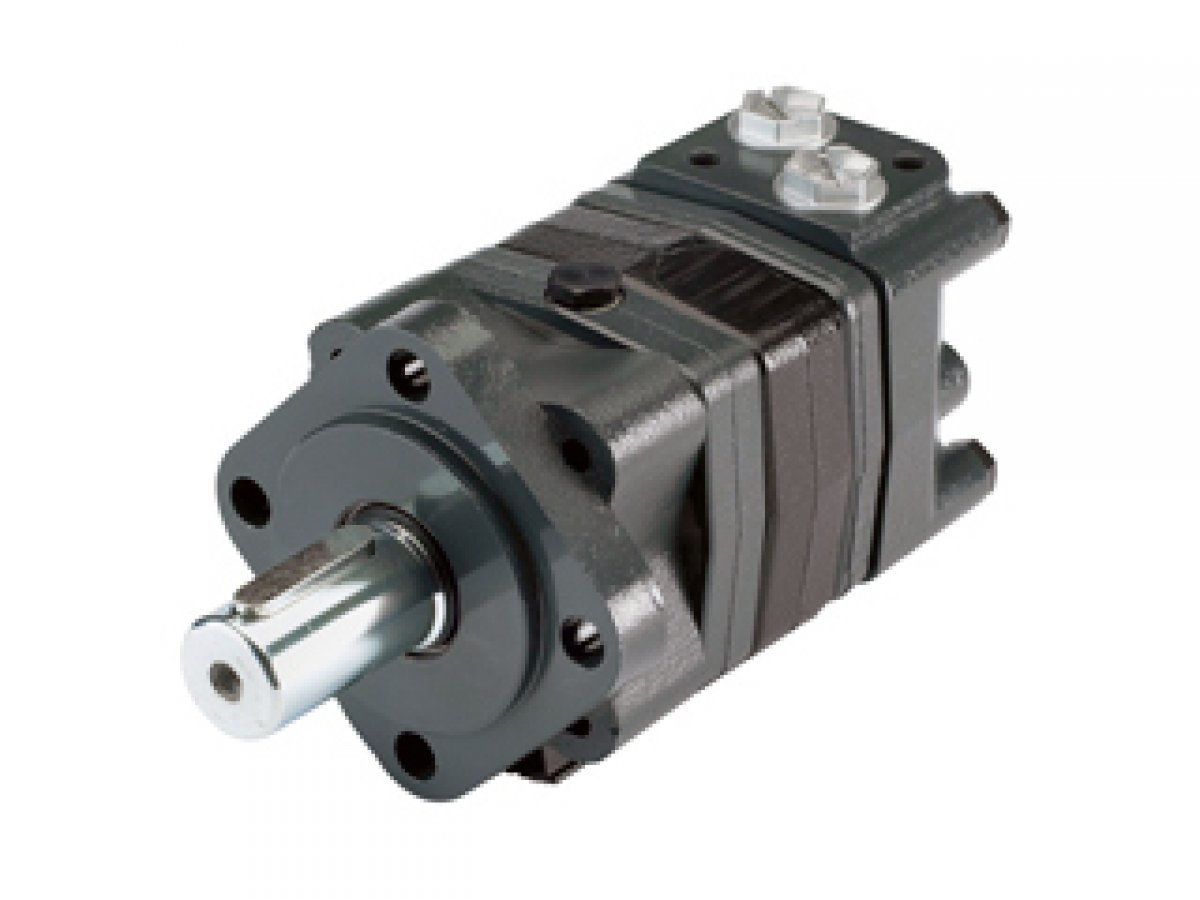

151F0505 OMS 250 White Sauer Danfoss hydraulic orbital motor 250 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100132
- Brand
- White
- Identification number
- 151F0505 OMS 250
- Other numbers
- 151F 0505 OMS250 151F0205 151F 0205
- Approximate weight (kg)
- 11,6
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Gearwheel set case width (L1): 43,5 mm
Displacement: 250 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 300 rpm (intermittent operation: 360 rpm)
Max. Torque: 720 Nm (intermittent operation: 870 Nm)
Max. Output Power: 14,5 kW (intermittent operation: 18 kW)
Max. Pressure Drop: 200 bar (intermittent operation: 250 bar; peak load:270 bar)
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute)
Max. starting pressure with unloaded shaft: 8 bar
Min. starting torque at max. press. drop cont.: 560 Nm
Min. starting torque at max. press. drop int.: 700 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
Gearwheel set case width (L1): 43,5 mm
Displacement: 250 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 300 rpm (intermittent operation: 360 rpm)
Max. Torque: 720 Nm (intermittent operation: 870 Nm)
Max. Output Power: 14,5 kW (intermittent operation: 18 kW)
Max. Pressure Drop: 200 bar (intermittent operation: 250 bar; peak load:270 bar)
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute)
Max. starting pressure with unloaded shaft: 8 bar
Min. starting torque at max. press. drop cont.: 560 Nm
Min. starting torque at max. press. drop int.: 700 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: Straight shaft D32 and flange A4
- Last updated: 2015-06-18 13:21:22
