Identifying the electrical actuator on a Danfoss PVG valve
Danfoss PVE electrohydraulic actuators are fitted to PVG directional valves. They are sometimes casually called “coils”, but the complete actuator may incorporate electronics and control functions. A replacement enquiry should identify that complete unit, rather than any number visible on one of its individual parts.

Series 7 succeeds earlier generations in applications within this family. This does not make every old and new part number interchangeable. Compatibility must be checked for the particular valve, function and electrical configuration.
Older references beginning with 157B

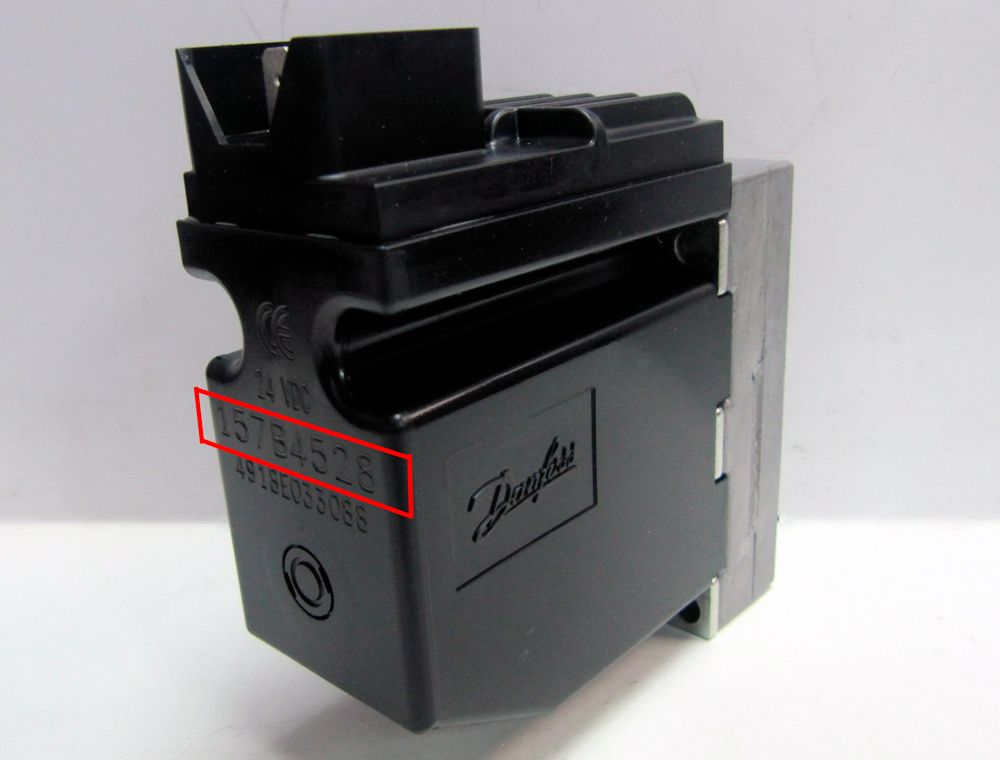

On the older example units, the reference is marked on the rear of the plastic housing. The format shown is 157Bxxxx: eight characters including the letter B. Record the full code, retaining every character.

“157B” alone is not enough, nor is the machine's commercial model name. A family can include different supply voltages, command signals, response characteristics or safety functions. A clear photograph of the marking is better than an uncertain transcription.
Reading the Series 7 identification

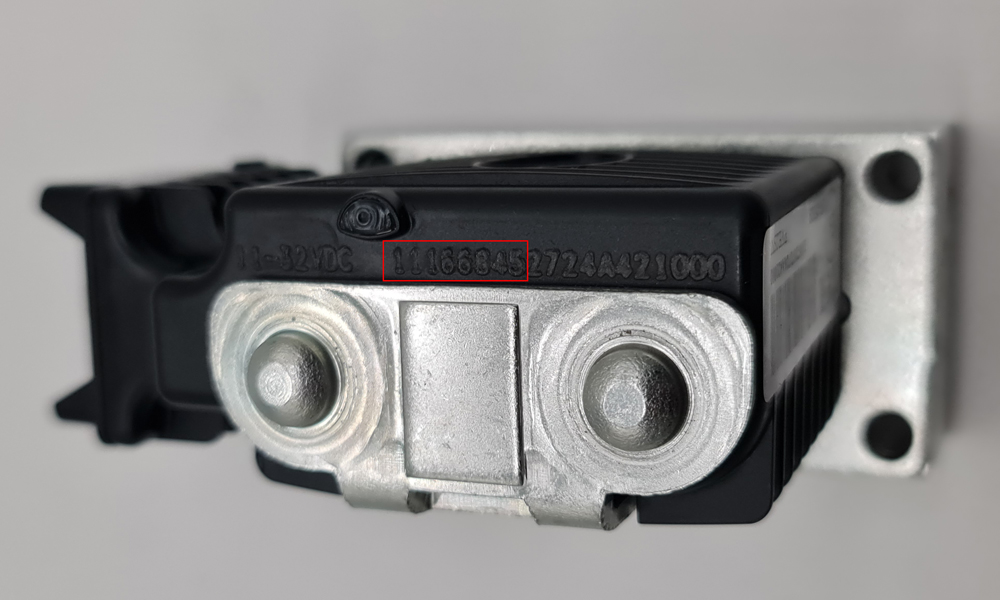

The Series 7 illustration shows a line of numbers on the rear of the actuator. In this example, the part number is the first eight digits, in the format 111xxxxx. This describes the pictured marking; other models or revisions may have different codes or labels.

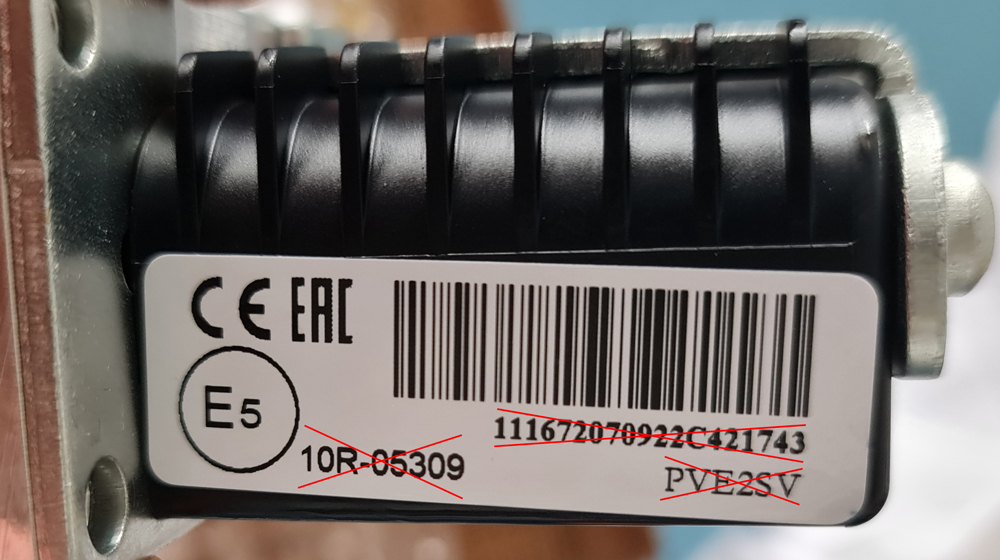

Batch numbers, manufacturing identifiers and other markings must not automatically be treated as the ordering reference. The supply voltage should not be inferred solely from the beginning of a part number.

Information needed to check a replacement
- Clear photographs of the complete marking, connectors and actuator installed on the valve.
- The full actuator part number and any visible PVE designation.
- The PVG valve family or part number and the machine model.
- The stated supply voltage and known command-signal or control type.
- The connector type and any special functions required by the application.
This information allows the unit to be checked against the relevant documentation. A replacement should not be selected merely because the housing or connector looks the same or the part number starts with similar characters.
Checking compatibility
Before replacing an actuator, confirm hydraulic, mechanical and electrical compatibility of the combination. A generation upgrade can involve specific mounting, control or adaptation requirements. Consult the applicable Danfoss PVE S7 documentation (PDF in English, July 2022) for the relevant versions.
If the identification is damaged, provide photographs of all sides and the machine nameplate. Correct part identification helps avoid confusing a complete electrohydraulic actuator with a coil or a different control variant.
